Titan+ Driver with EU Plug

SKU: SE495950EU

Slim 16mm depth
Easy to use and install
Available as 6W/15W/30W/60W
Integrated 2-pin connector, distribution ports
Compatible lighting control accessories - PIR, IR, Switch & Door sensors. Simply plug in the chosen sensor to the designated port in the driver.
Only dimmable when paired with a sensor for control.

Note: Not to be installed with a wall dimmer.

Dimming Explained:
Delivering full dimmable options, we’ve developed two ranges of driver which offer dimmability. Our Titan+ range of drivers are designed to handle dimmable output at max 24v. Titan Dimmable is designed to handle dimming voltage from mains input max 230v, typically controlled by a wall mounted dimmer switch.

Size:

6W 15W 30W 60W

Variant

Versatile control

With the Titan+ driver you have the ultimate versatility when it comes to control options; Main powered wall switch, mains powered plug, sensor control or remote control

Sensor control

With a designated 'Switch Control' port built-in to the driver you can easily connect the receiver to the Titan+ driver to pair your sensor.

Titan+ Wireless Sensors

The Titan+ Wireless Sensors have been designed for quick and easy installation to offer convenience for installers.

IR (Infra-red): Ideal for hand-wave
activation
PIR (Motion Sensor): Auto-activation on
movement
Door Sensor: Lights on when doors open, works on double doors
Touch Sensor: Simple tap-to-activate
control

What you'll need for install

1. Titan+ Driver

Select the correct wattage driver depending on the total wattage of the lighting you have selected. Find out what you need with our driver calculator

2. Choose Sensor

Select the correct ensor depending on how you want to control your lighting. The wireless sensor range consists of Touch, IR, PIR and Door sensor

3. Choose lighting

The Titan+ driver has 2-pin distribution ports that are compatible with Single Colour or TrioTone® Lighting

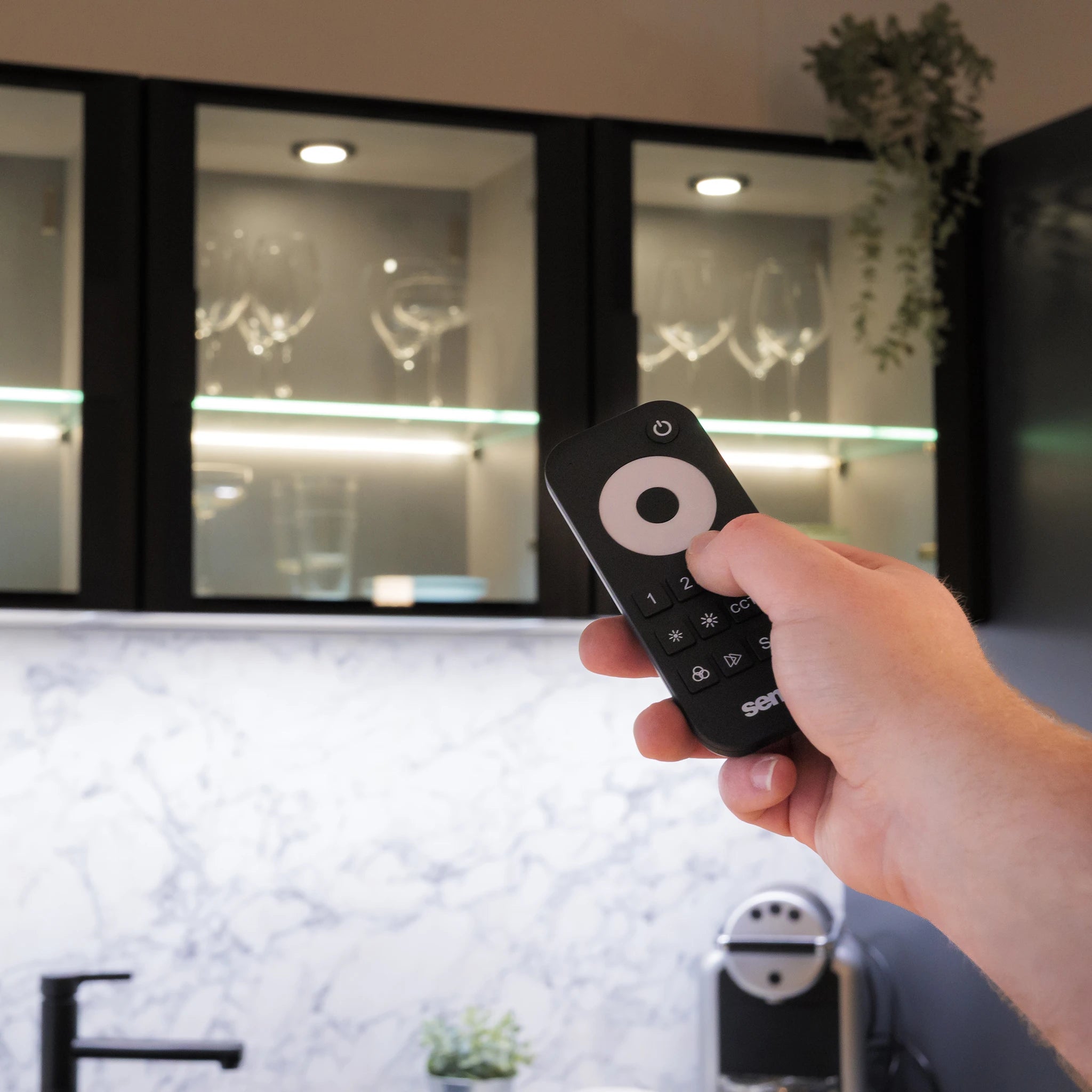

Remote control

The Titan+ driver can be used in conjunction with the Universal Remote Control to activate, dim LEDs, change lighting colour or zone your lighting

Universal remote

By using the universal remote you can control all lighting types by using the relevant receiver to pair the remote to the Titan+ driver. Multiple receivers can be paired to one remote for the ultimate control.

View remote

Compatible receivers

The receivers easily plug in to the driver with the 2-pin connection and your lighting plugs directly into the distribution block on the receiver. Easily pair your remote with each connected receiver to control your lighting
